TR TROLLEY CONVEYOR PART

TR CHAIN

chain/size	TR348	TR458	TR678
Pitch	76.2	101.6	152.4
A	27.1	35.7	50.8
B	46.8	57	79.4
C	19.8	25.4	32
D	13	16.3	21

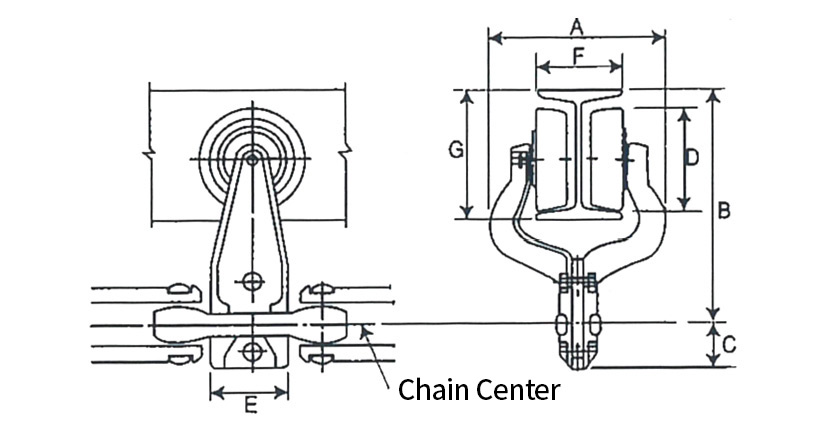

TROLLEY UNIT

chain/size	A	B	C	D	E	A
						F	G	tare weight kgf/m
TR348	122	138	33	55	40	75	75	11.9
TR458	133	182	34	80	54	75	100	12.9
TR678	172	253	43	125	85	75	150	36.2

specifications

chain/size	allowed tare weight and tare weight(kg)				pendant, crevis size(mm)
	pendant A	pendant B	crevis	load bar	A1	A2	B	C	D
TR348	60	125	125	250	62	72	20	38	13
TR458	140	250	250	500	68	78	25	50	17
TR678	300	800	800	1600	82	97	30	75	21

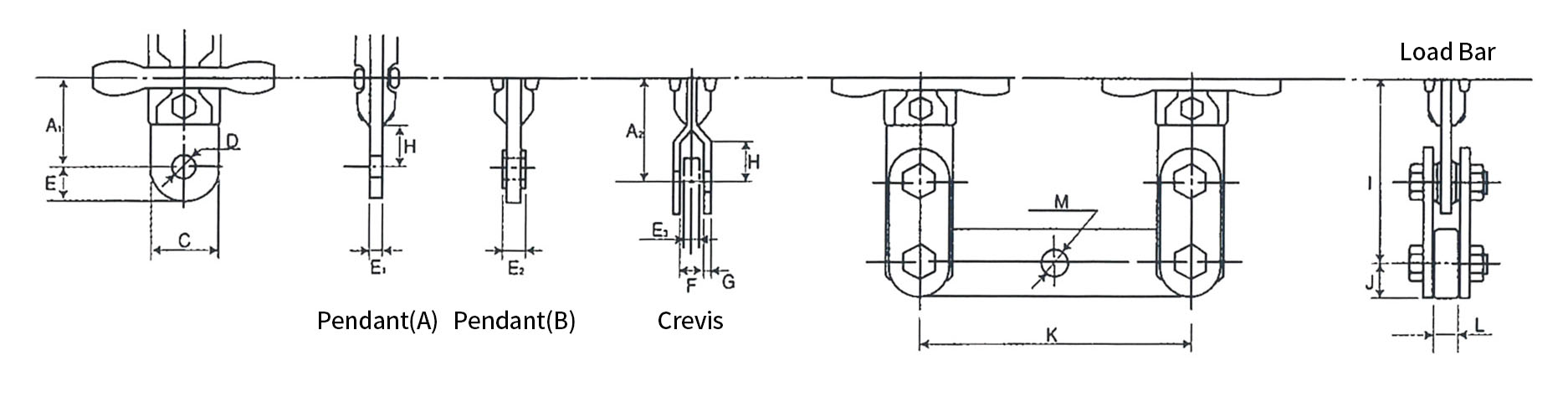

specifications

chain/size	pendant, crevis size(mm)							load bar size(mm)
	E1	E2	E3	F	G	H	Pitch	I	J	K	L	M	Pitch
348	6.3	12.5	12	13	3.2	29	152.4	117	25	152.4	12	17	304.8
458	9	16.5	16	17	4.5	34	203.2	128	25	203.2	16	21	406.4
678	12.7	25.5	25	25	6.3	39	304.8	167	32.5	304.8	25	31	609.6

a. Straight Rail: (standard size 6m, under 6m can be used if needed)
b. Horizontal curved rail : curvature radius 600R, 30°, 45°, 60°, 90˚
c. Vertical Rail :

	curvature radius(R)	angle
TR348	1200, 1800, 2400, 2800	10˚, 15˚, 20˚, 25˚, 30˚, 35˚
TR458	1500, 2300, 3000, 3600
TR678	3600, 4200, 5200
