Chain&Hanger

Chains include normal and heat-resisting types

- Normal type: press roller type

- Heat-resisting type : lathe turning roller type

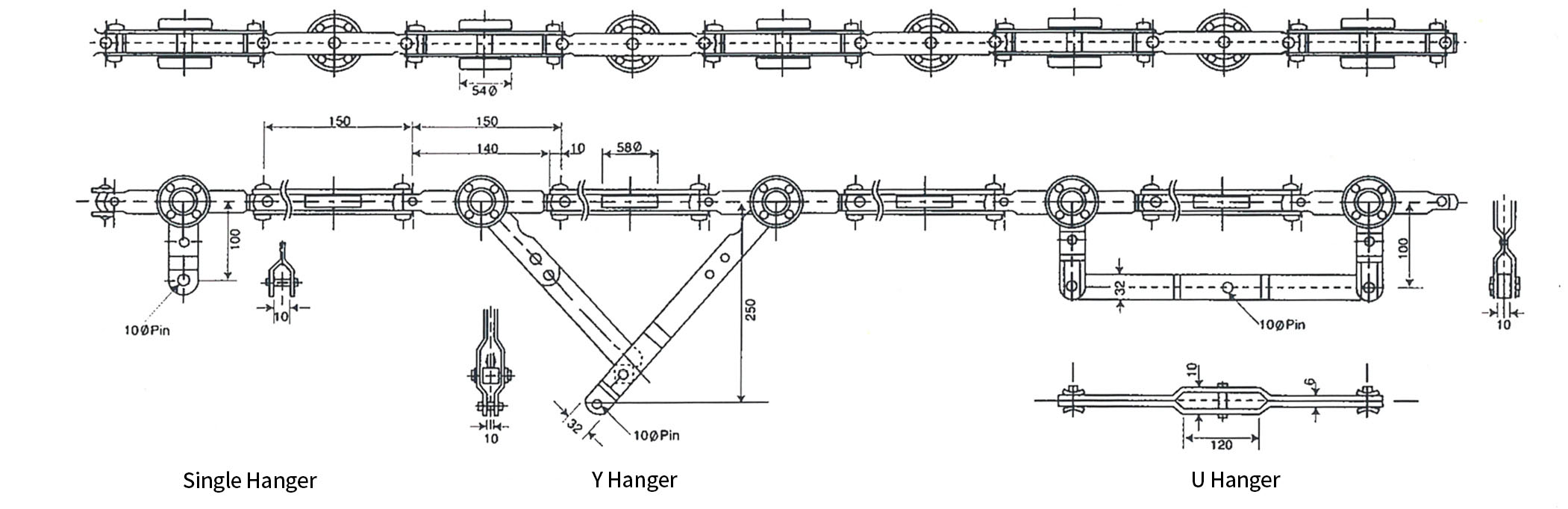

The company has designed this as TH type conveyor therefore has fine structure. Further, this has good durability and performs well. Y hanger uses +(cross) panel therefore can work at curved part as well.

Method for inserting chain in rail

For inserting chain the rivet of C pin (cotter pin) should be located in upside as indicated below. Check this out please

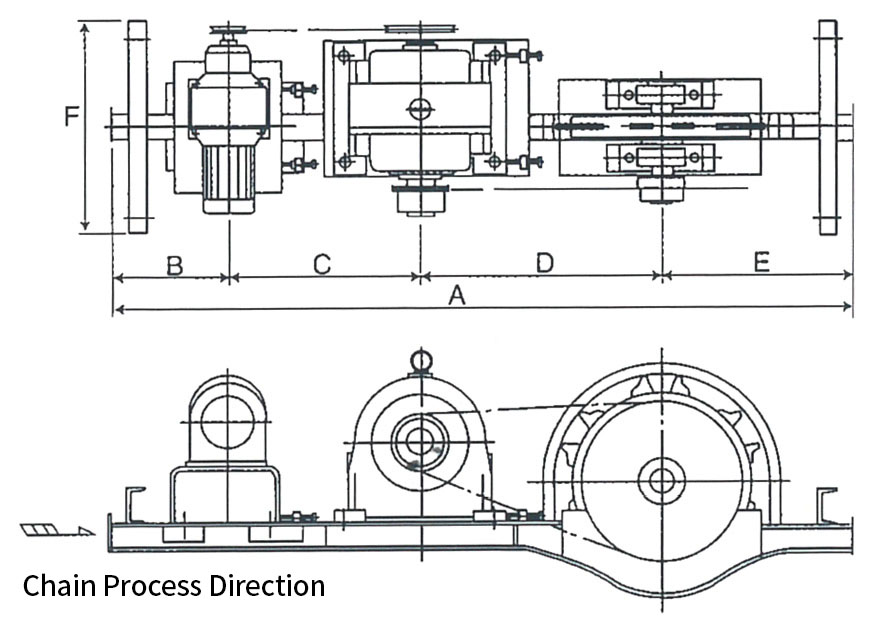

Sign	TH030, TH050
A	2100
B	330
C	540
D	680
E	550
F	600
