Abstract

Forged steel rivetless chain has been used for trolley conveyor for many years for its high strength and flexibility.
Further, this chain enables easy-assembling without tools.

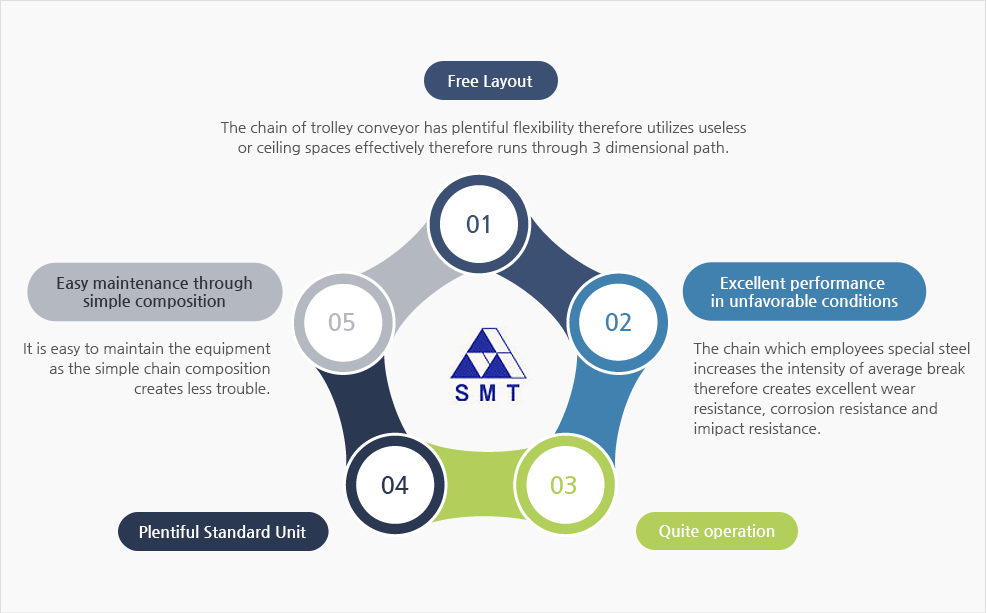

Merit

Usage

Specifications

		TR-3	TR-4	TR-6

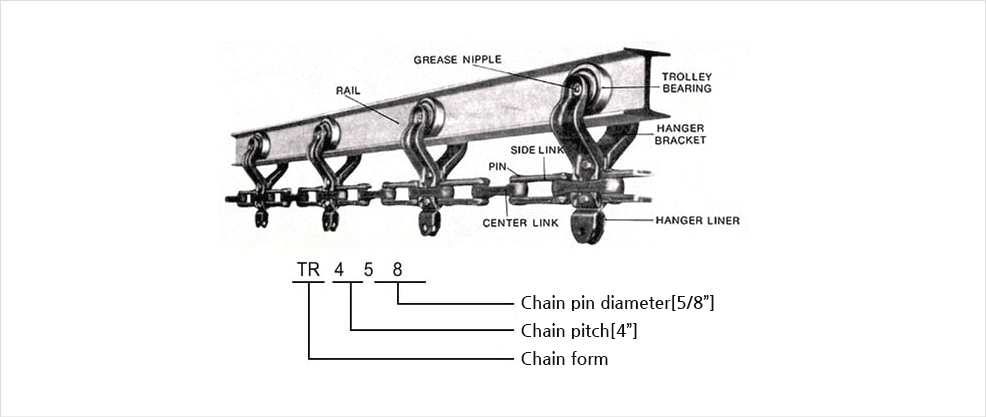

chain	Type	TR-348	TR-485	TR-678
	allowed load(kg)	1000	2000	3500
	weight(kg/m)	3.4	4.6	10.2
trolley	weight(kg/m)	1.2	2.4	10
loading condition(kg)	pendant(A)	60	140	300
	pendant(B)	125	250	800
	Crevis	125	250	800
	Rod Bar	250	500	1600
standard horizontal curvature diameter(mm)		600	600	1000
standard vertical curvature diameter(mm)	4L/trolley	1800	2300	2800
	6L/trolley	2400	3000	4200
	8L/trolley	2800	3600	5200
rail		I 75×75	I 100×75	I 150×75
