Design Standard

Calculation of Rail Length

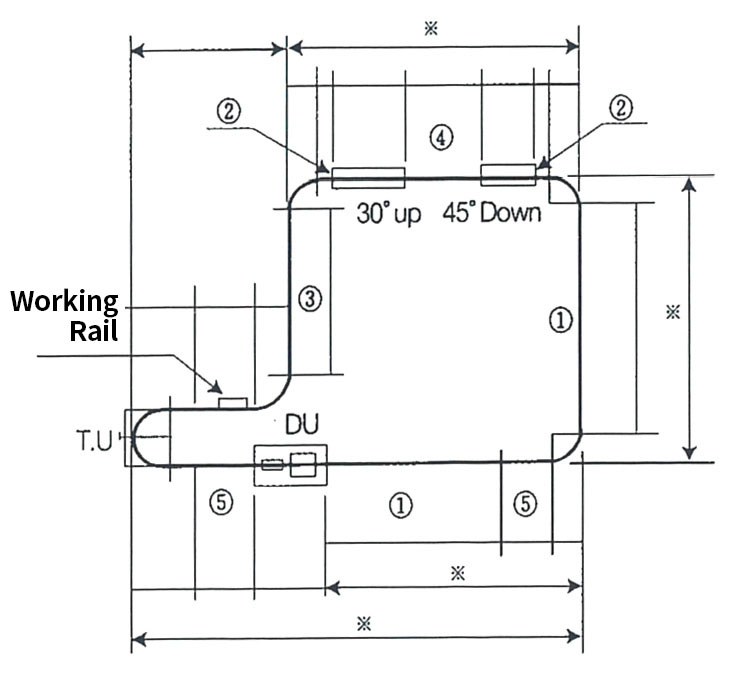

- The established path needs to be classified through component unit.

- ++ indicates rail connector.

- The main sign including ※ is used to apply and calculate path and assembly drawing.

- Calculate curve size.

- Draw up rail table.

d·C·ℓ Calculation table of standard R (Unit mm)

θ	R	d	c	ℓ
30˚	400	1.7321a+214	2a-214	2a+205
	600	1.7321a+322	2a-322	2a+307
45˚	400	a+331	1.4142-331	1.4142a+297
	600	a+497	1.4142-497	1.4142a+445

Rail NO.	Product Name	Rail Length	Quantity	Length subtotal
-	take up	3,484	1	3,484
-	90˚ transverse valley	942	4	3,768
-	45˚ transverse valley	471	2	942
-	30˚ transverse valley	314	2	628
-	working rail	1,100	1	1,100
Total		Length		29,181

d·C·ℓ Calculation table of standard R (Unit mm)

R	a	d	ℓ	θ
400	10	126	127	9˚ 4´
	20	178	179	12˚ 50´
	30	217	220	15˚ 44´
	40	250	254	18˚ 12´
600	10	155	155	7˚ 24´
	20	218	219	10˚ 28´
	30	267	269	12˚ 50´
	40	307	311	14˚ 50´

d·C·ℓ Calculation table of standard R (Unit mm)

Rail NO.	Product Name	Rail Length	Quantity	Length subtotal
①	Standard rail	4,500	2	9,000
②	Curve rail	300	2	600
③	Abstract rail	3,300	1	3,300
④	Abstract rail	2,159	1	2,159
⑤	Abstract rail	1,050	2	2,100
	Drive unit	2,100	1	2,100
