L-3&L-5

• 개요
• Part List
• 부품 List
• Hanger
• 시공 실적

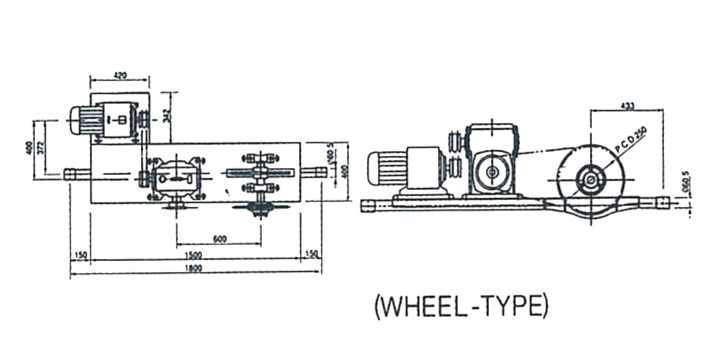

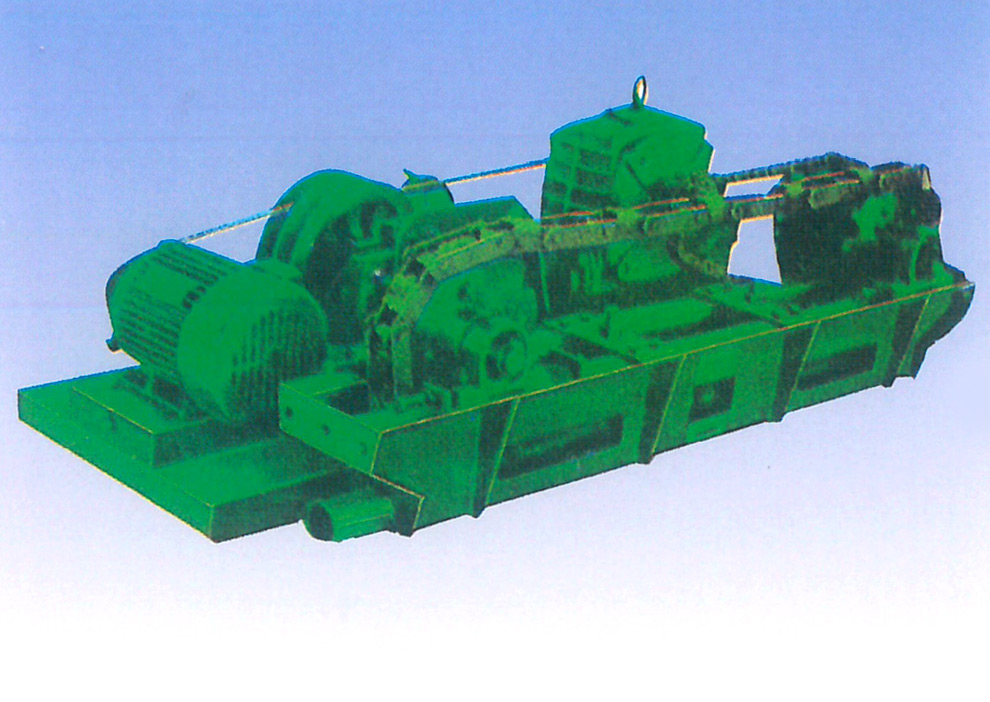

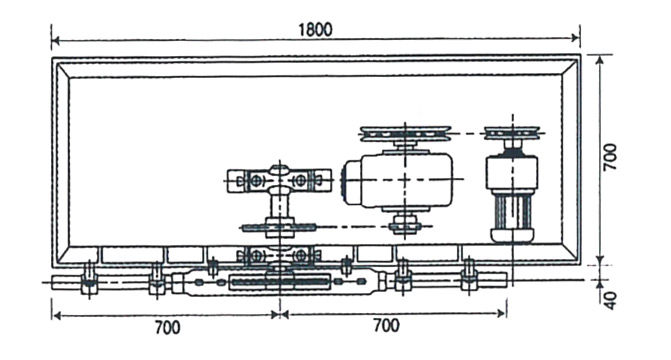

Drive Unit

Drive Unit ASS'Y(L-3)

Drive Unit ASS'Y(L-5)

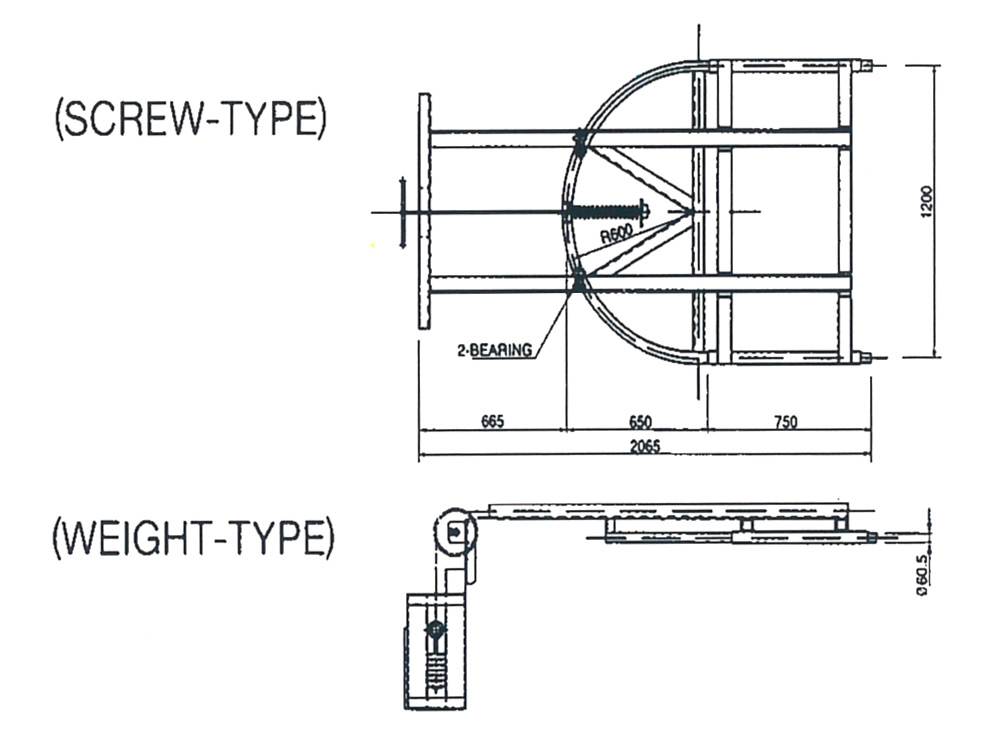

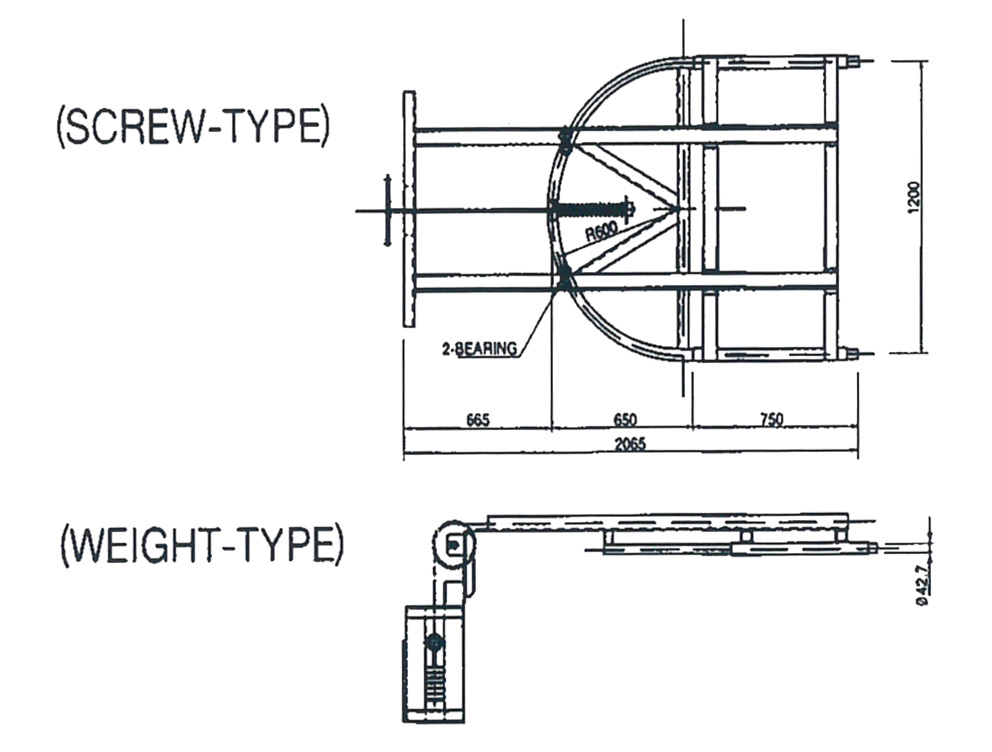

Take-up Unit

Take-up Unit(L-3)

Take-up Unit(L-5)

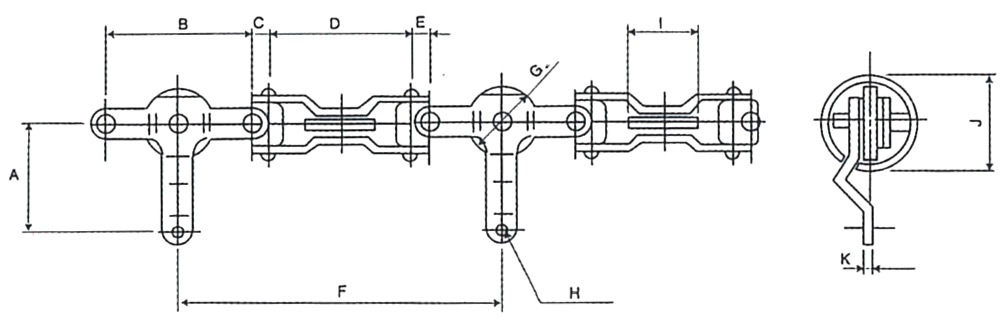

Main Chain

부위	A	B	C	D	E	F	G	H	I	J	K
L-3	50	68.9	7.15	68.9	7.15	152.1	33.34	6.35	33.34	41.3	3.2
L-5	60	88	12	88	12	200	48	8.5	48	60.5	4.0
